3GBW三螺桿保溫樹脂泵

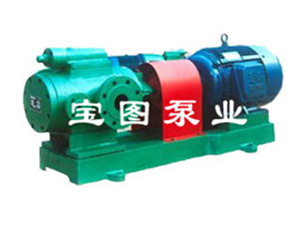

圖示-(3GBW三螺桿保溫樹脂泵)圖片
3GBW三螺桿保溫樹脂泵用來輸送溫度≤150℃、粘度3-760cSt、不含固體顆粒、無腐蝕性、具有潤滑性能的介質。適用壓力范圍：0.6-2.5Mpa;適用流量范圍:0.6-123m3/h。主要應用于燃油輸送、液壓工程、船舶工程，石化及其他工業。此泵相對普通齒輪泵的優勢所在：1、介質為直線連續輸送、無攪拌、無脈動。2、振動小，噪音低。3、壓力高、效率高。4、結構簡單、拆裝方便。5、體積小，重量輕。6、磨損輕微，壽命長。
3GBW三螺桿保溫樹脂泵密封一般采用機械密封。泵通過爪型聯軸器由電動機驅動。從主軸外端向泵看，為順時針旋轉。材質主、從螺桿16MnCrS5,40Cr,45,38CrMoALA泵體：HT200,QT450-10,ZCuSn10Pl,ZG270-500
3GBW三螺桿保溫樹脂泵技術參數：
|
泵規格
|
流量
|
出口壓力
Mpa |
泵轉速
r/min |
功率KW
|
必須汽蝕余量
|
電動機型號
|
||
|
m3/h
|
L/min
|
軸功率
|
電機功率
|
|||||
|
90*2-42
|
28.2
|
470.9
|
0.6
|
950
|
6.6
|
11
|
5.5
|
160L-6-B3
|
|
27.5
|
457.6
|
1.0
|
10.2
|
15
|
180L-6-B3
|
|||
|
43.1
|
718.8
|
0.6
|
1450
|
10
|
15
|
160L-6-B3
|
||
|
41.9
|
698.5
|
1.0
|
15.5
|
18.5
|
180M-4-B3
|
|||
|
90*2-46
|
34.0
|
566.7
|
0.8
|
950
|
9.7
|
11
|
5.5
|
160L-6-B3
|
|
52.6
|
875.4
|
0.6
|
1450
|
12
|
15
|
160L-4-B3
|
||
|
520
|
866
|
0.8
|
14.9
|
18.5
|
180M-4-B3
|
|||
|
51.4
|
8561
|
1.0
|
18.6
|
22
|
180L-4-B3
|
|||
|
100*2-46
|
48.0
|
800
|
0.8
|
950
|
13.3
|
15
|
5.5
|
180L-6-B3
|
|
72.7
|
1212
|
0.6
|
1450
|
165
|
18.5
|
180M-4-B3
|
||
|
72.0
|
1200
|
0.8
|
20.4
|
22
|
180L-4-B3
|
|||
|
71.2
|
1187
|
1.0
|
25.5
|
30
|
200L-4-B3
|
|||
|
100*2-51
|
56.9
|
948.9
|
0.6
|
950
|
12.5
|
15
|
5.5
|
180L-6-B3
|
|
55.7
|
928.6
|
1.0
|
20.8
|
30
|
225M-6-B3
|
|||
|
86.9
|
1448.3
|
0.6
|
1450
|
19.1
|
22
|
180L-4-B3
|
||
|
850
|
1417.2
|
1.0
|
31.8
|
37
|
225S-4-B3
|
|||
|
110*2-46
|
60.9
|
1015
|
0.6
|
950
|
13.7
|
18.5
|
5.5
|
200L-6-B3
|
|
58.9
|
951.7
|
1.0
|
21.8
|
30
|
255M-6-B3
|
|||
|
96.7
|
1611
|
0.6
|
1450
|
21.9
|
30
|
200L-4-B3
|
||
|
94.6
|
1577
|
1.0
|
33.9
|
45
|
225M-4-B3
|
|||
|
120*2-42
|
67.9
|
1131
|
0.6
|
950
|
15.5
|
18.5
|
5.5
|
200L-6-B3
|
|
65.4
|
1090
|
1.0
|
24.5
|
30
|
225M-6-B3
|
|||
|
108
|
1802
|
0.6
|
1450
|
24.7
|
30
|
200L-4-B3
|
||
|
105
|
1760
|
1.0
|
38.2
|
45
|
225M-4-B3
|
|||
|
120*2-46
|
79.6
|
1327
|
0.6
|
950
|
17.8
|
22
|
5.5
|
200L-6-B3
|
|
77.2
|
1285
|
1.0
|
28.2
|
37
|
250M-6-B3
|
|||
|
126
|
2101
|
0.6
|
1450
|
28.5
|
37
|
225S-4-B3
|
||
|
123
|
2059
|
1.0
|
44.1
|
55
|
225M-4-B3
|
|||
|
150*2-46
|
158
|
2640
|
0.6
|
950
|
34.6
|
45
|
5.5
|
Y280S-6-B3
|
|
154
|
2582
|
1.0
|
54.5
|
75
|
Y315S-6-B3
|
|||
|
241.7
|
4029.7
|
0.6
|
1450
|
53.8
|
7590
|
Y280S-4-B3
|
||
|
236.5
|
3942.2
|
1.0
|
82.2
|
|
Y280M-4-B3
|
|||
